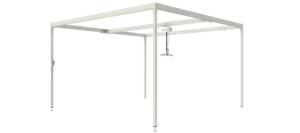

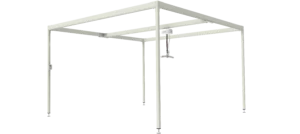

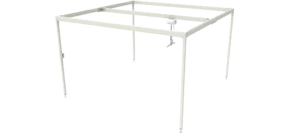

AirGlide360 Gantry System

The Gantry hoist system provides a freestanding lifting solution where ceiling-mounted hoists are not possible. Designed for flexibility and ease of installation, it delivers safe, controlled patient transfers without structural alteration to the building.
Freestanding Hoist System Ideal for temporary installations or environments where ceiling fixing is not feasible.
High Safe Working Load Supports lifting capacities up to 275 kg when used with compatible hoist units.
Robust, Durable Construction Manufactured from galvanised steel and aluminium with a powder-coated finish.
Adjustable Feet with Rubber Base Provides stability on uneven floors while protecting floor surfaces.
Silent Traverse Trolley Wheels Ensures smooth, low-noise movement along the gantry beam.
End Stops with Rubber Buffers Prevents over-travel and enhances operational safety.
Standardised Components Utilises standard C-profiles, poles, and fixings for efficient installation.
Integrated Charging Solution Wall-mounted charger can be installed directly onto the gantry pole.
Our Method

An innovative solution for flexible hoisting

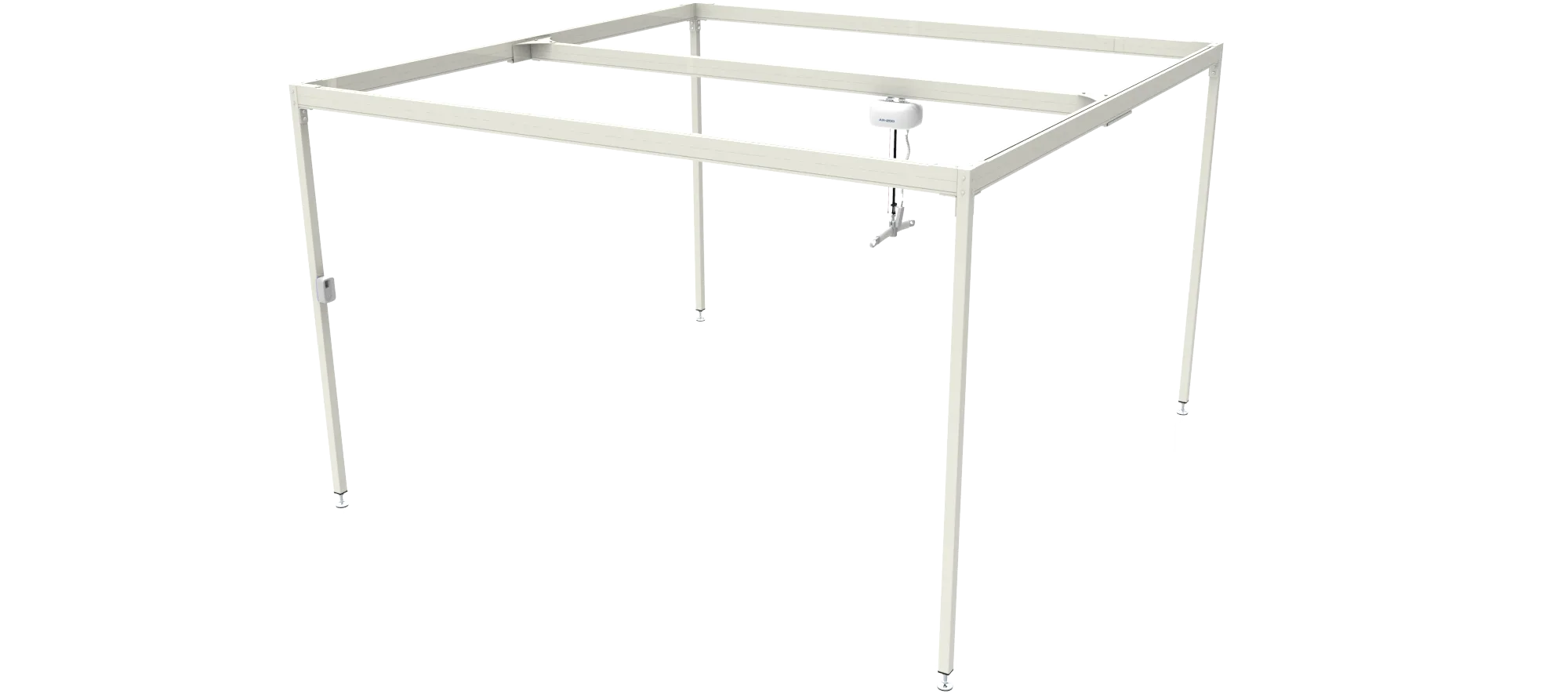

The AirGlide360 Gantry hoist system is a mobile, freestanding overhead lifting solution designed for environments where permanent ceiling installation is impractical or not permitted. Constructed from galvanised steel and aluminium, the system offers reliable support for safe patient transfers while maintaining flexibility of use.

With adjustable feet, silent traverse trolley wheels, and compatibility with AirRise hoist units, the gantry system supports dignified movement across a wide range of care and healthcare settings.

Freestanding Hoist System

Ideal for temporary installations or environments where ceiling fixing is not feasible.

High Safe Working Load

Supports lifting capacities up to 275 kg when used with compatible hoist units.

Robust, Durable Construction

Manufactured from galvanised steel and aluminium with a powder-coated finish.

Adjustable Feet with Rubber Base

Provides stability on uneven floors while protecting floor surfaces.

Silent Traverse Trolley Wheels

Ensures smooth, low-noise movement along the gantry beam.

End Stops with Rubber Buffers

Prevents over-travel and enhances operational safety.

Standardised Components

Utilises standard C-profiles, poles, and fixings for efficient installation.

Integrated Charging Solution

Wall-mounted charger can be installed directly onto the gantry pole.
Learn More

Frequently Asked Questions

A gantry hoist system provides overhead lifting support without the need for ceiling installation, making it suitable for temporary, rental, or structurally restricted environments.

The system supports a maximum lifting capacity of 275 kg when used with a compatible hoist unit.

No. The gantry system is freestanding and does not require permanent fixing to walls or ceilings.

Yes. It is suitable for care homes, hospitals, rehabilitation settings, and home care environments where flexibility is required.

The system is designed to distribute load evenly, with an average load of approximately 50–54 kg per foot, ensuring stability during use.

Yes. While robust and stable, the system can be dismantled and relocated if required, making it ideal for changing care needs.
