Ceiling Hoist Systems

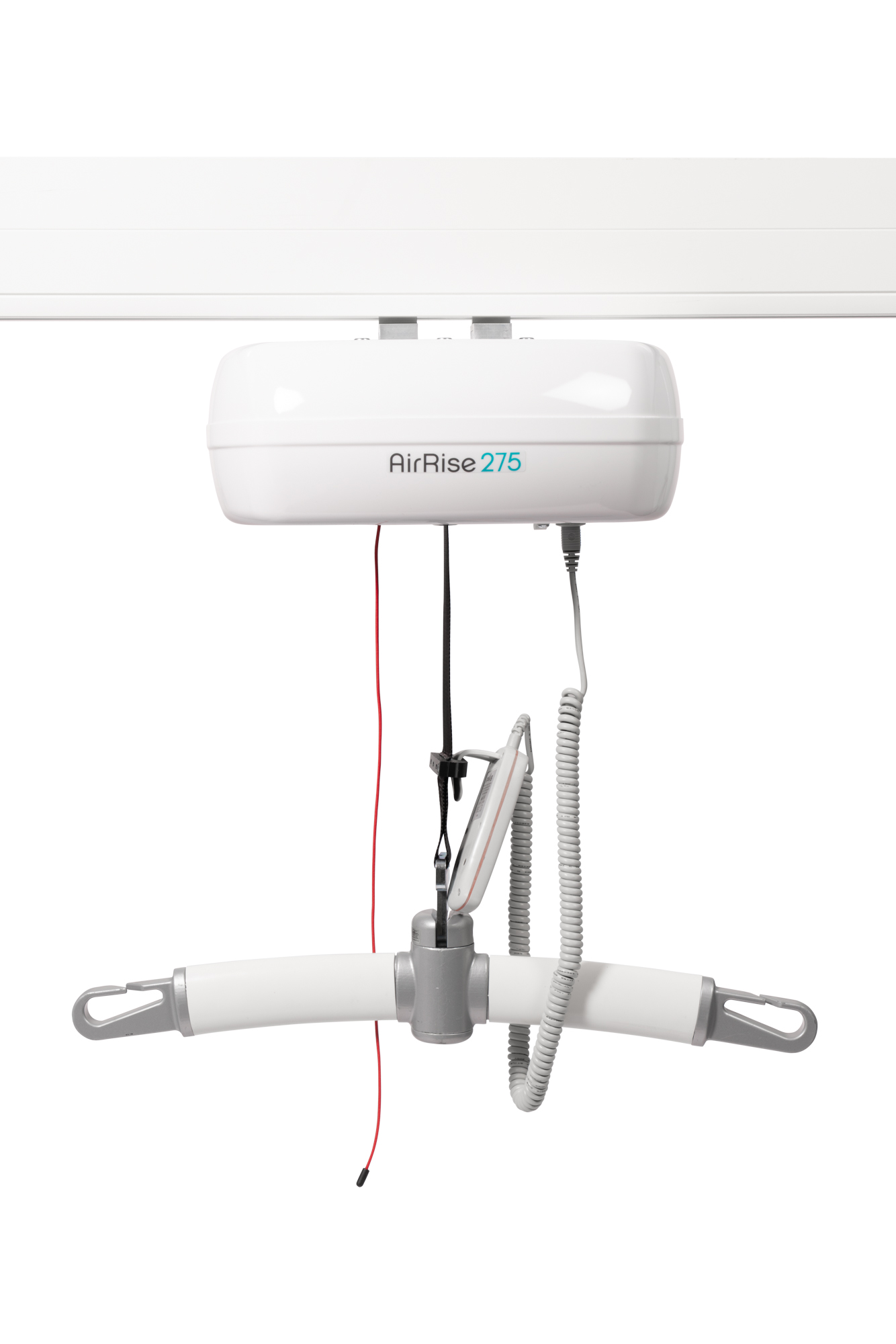

AirRise275 Hoist Unit

The AirRise275 hoist unit is a powerful ceiling hoist designed for safe, smooth patient transfers where higher lifting capacity is required. Offering quiet operation and soft-start/stop technology, it delivers enhanced comfort and control in demanding care environments.
Smooth, Quiet Operation Soft-start and soft-stop technology ensures controlled, comfortable transfers.
Advanced Battery Protection Intelligent battery management with visual and audible alerts helps prevent downtime.
Emergency Safety Functions Includes emergency stop and emergency lowering for added reassurance.
Versatile Spreader Bar Compatibility Compatible with a range of spreader bars and slings to suit individual needs.
Effortless Charging Magnetic through-handset charging simplifies recharging and daily operation.
Easy and Precise Movement Double steering trolley for an easy and smooth transfer through the AirGlide360 Rail.
Maximum lifting capacity 275kg
Operation AirRise Hand Control
Horizontal displacement speed Manually
Central Suspension Point Quick release hook with possibility to fix a spreader bar with a bolt d=10mm
Minimum charging time (critical level) 8 hours
Battery indicator Status LED. Green = full, orange = charge, red = critical.
Switch-off time when not in use 15 minutes
Switch-off time charge indication (bedroom mode) 2 minutes
Number of lifts per full charge @70cm >125 @80kg. >80 @200 kg. >50@275kg
Lifting tape (total length) 50x2400 mm (longer available)
Weight 14.7kg
Sound level up (without load) 48 dB (A)
Sound level down (without load) 47 dB (A)
Sound level up (maximum load) 56 dB (A)
Sound level down (maximum load) 53 dB (A)
Time lifting tape up (full length, no load, average) 44 seconds (48mm/second)
Time lifting tape down (full length, no load, average) 40 seconds (53mm/second)
Time lifting tape up (full length, maximum load) 52 seconds (41mm/second)
Time lifting tape down (average, maximum load) 42 seconds (51mm/second)
Input voltage 24 V/DC (through PLS Wall Charger)
Batteries (2x) 12 V - 5.0 Ah (Lead Acid sealed)
IP rating Ceiling Hoist IP-32
IP rating Hand Control IP-66
Central suspension point control Slow start and slow stop
Average stopping distance central suspension point 37 mm
Cover HIPS
Basic UDI-DI 87201657932027U9
Length emergency cord 60cm (adjustable)
In compliance with Regulation (EU) 2017/745 and standards See Declaration of Conformity
Dimensions (mm) See diagram above
Download Full Spec Sheet
AirRise275 Data Sheet
BIM Download
Declaration Of Conformity
Training Video
Our Method

Designed, Configured and Installed for Safe Everyday Assisted Lifting

The AirRise275 hoist unit is engineered to deliver reliable, controlled lifting support in care and healthcare environments where higher capacity is required. Designed to promote safe movement while maintaining dignity for the individual and confidence for carers, the AirRise275 integrates seamlessly into everyday care routines without disrupting clinical workflows.

Each AirRise275 installation begins with a detailed assessment of the environment, including ceiling structure, load requirements, and transfer coverage. The system is then configured, installed, and commissioned as a complete solution, ensuring smooth operation, consistent performance, and long-term reliability while reducing manual handling risk and supporting safer working practices.

Smooth, Quiet Operation

Soft-start and soft-stop technology ensures controlled, comfortable transfers.

Advanced Battery Protection

Intelligent battery management with visual and audible alerts helps prevent downtime.

Emergency Safety Functions

Includes emergency stop and emergency lowering for added reassurance.

Versatile Spreader Bar Compatibility

Compatible with a range of spreader bars and slings to suit individual needs.

Effortless Charging

Magnetic through-handset charging simplifies recharging and daily operation.

Easy and Precise Movement

Double steering trolley for an easy and smooth transfer through the AirGlide360 Rail.
Learn more

Frequently Asked Questions

The AirRise275 is designed for environments requiring higher lifting capacity while maintaining smooth, dignified patient transfers.

Yes. With an increased safe working load, it is suitable for individuals weighing up to 275 kg and those with higher dependency needs.

Yes. The hoist features low-noise motors and smooth motion to reduce anxiety for users.

Emergency stop, emergency lowering, and battery status alerts are standard.

Yes. The AirRise275 is designed for use with compatible ceiling-mounted track systems.
