Ceiling Hoist Systems

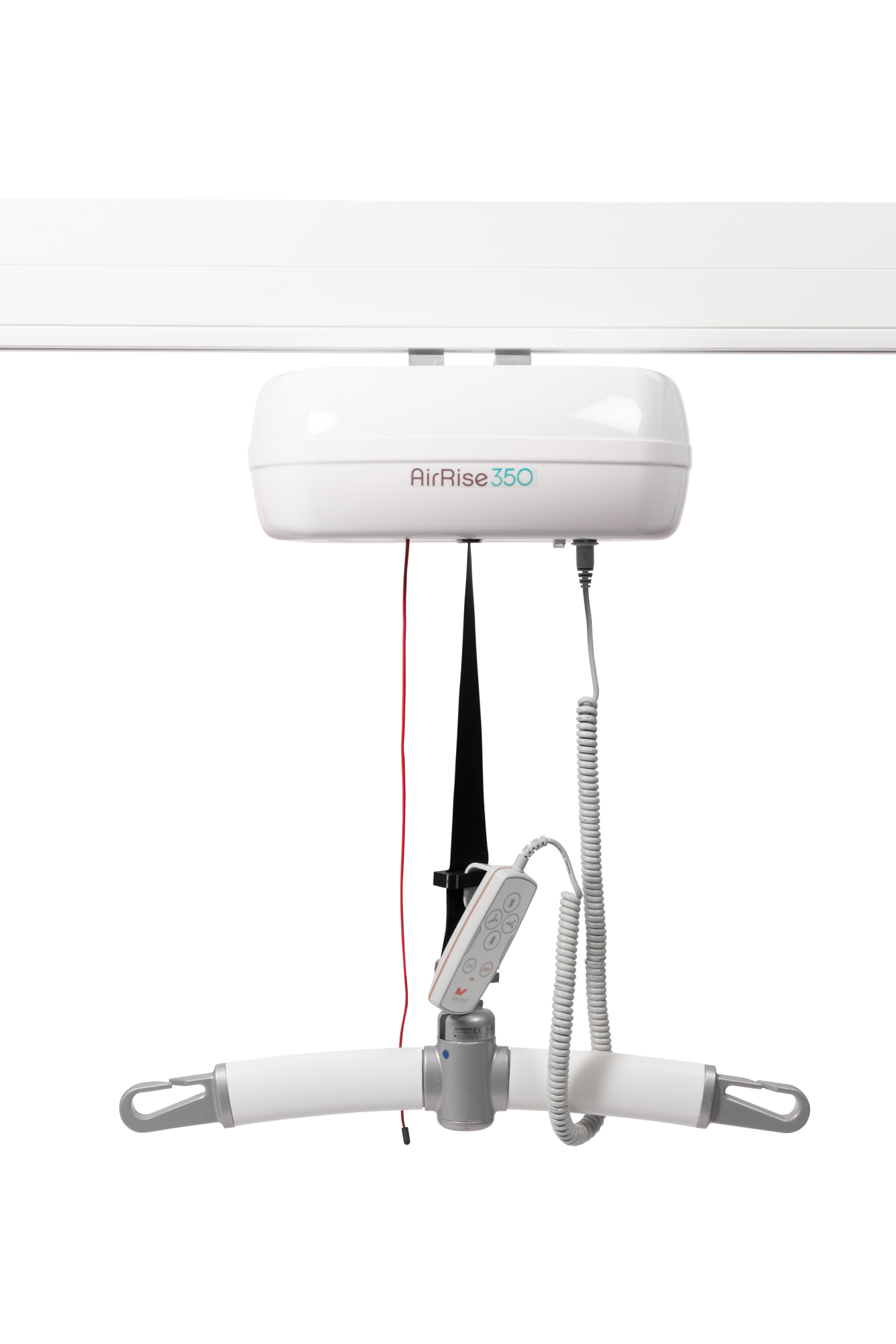

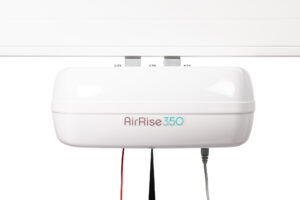

AirRise350 Hoist Unit

The AirRise350 hoist unit is a high-capacity ceiling hoist engineered for heavier users and complex care needs. Combining powerful lifting performance with smooth, controlled movement, it supports safe, dignified transfers in specialist healthcare environments.
350 kg Safe Working Load Designed for bariatric care and higher-risk manual handling scenarios.
Controlled Lifting Performance Soft-start and soft-stop technology ensures stable, reassuring transfers.
Quiet Motor Operation Minimises noise disruption in clinical and residential settings.
Advanced Battery Management Intelligent monitoring with visual and audible battery alerts.
Emergency Safety Systems Emergency stop and emergency lowering included as standard.
Flexible Sling Compatibility Supports a range of bariatric slings and spreader bar options.
Maximum lifting capacity 350kg
Operation AirRise Hand Control
Horizontal displacement speed Manually
Central Suspension Point Quick release hook with possibility to fix a spreader bar with a bolt d=10mm
Minimum charging time (critical level) 8 hours
Battery indicator Status LED. Green = full, orange = charge, red = critical.
Switch-off time when not in use 15 minutes
Switch-off time charge indication (bedroom mode) 2 minutes
Number of lifts per full charge @70cm >125 @80kg. >80 @200 kg. >50@350kg
Lifting tape (total length) 50x2400 mm (longer available)
Weight 14.7kg
Sound level up (without load) 48 dB (A)
Sound level down (without load) 47 dB (A)
Sound level up (maximum load) 56 dB (A)
Sound level down (maximum load) 53 dB (A)
Time lifting tape up (full length, no load, average) 44 seconds (48mm/second)
Time lifting tape down (full length, no load, average) 40 seconds (53mm/second)
Time lifting tape up (full length, maximum load) 67 seconds (31mm/second)
Time lifting tape down (average, maximum load) 42 seconds (51mm/second)
Input voltage 24 V/DC (through PLS Wall Charger)
Batteries (2x) 12 V - 5.0 Ah (Lead Acid sealed)
IP rating Ceiling Hoist IP-32
IP rating Hand Control IP-66
Central suspension point control Slow start and slow stop
Average stopping distance central suspension point 37 mm
Cover HIPS
Basic UDI-DI 87201657932035U8
Length emergency cord 60cm (adjustable)
In compliance with Regulation (EU) 2017/745 and standards See Declaration of Conformity
Dimensions (mm) See diagram above
Download Full Spec Sheet
Data Sheet
BIM File
Our Method

Designed, Configured and Installed for Higher-Capacity Assisted Lifting

The AirRise350 hoist unit is engineered to provide dependable, controlled lifting support in care and healthcare environments where increased capacity is required. Designed to support safe movement while preserving dignity for the individual and confidence for carers, the AirRise350 integrates seamlessly into everyday care routines without disrupting clinical workflows.

Each AirRise350 installation begins with a comprehensive assessment of the environment, including ceiling structure, load requirements, and transfer coverage. The system is then configured, installed, and fully commissioned as a complete solution, ensuring smooth operation, consistent performance, and long-term reliability while reducing manual handling risk and supporting safer working practices.

350 kg Safe Working Load

Designed for bariatric care and higher-risk manual handling scenarios.

Controlled Lifting Performance

Soft-start and soft-stop technology ensures stable, reassuring transfers.

Quiet Motor Operation

Minimises noise disruption in clinical and residential settings.

Advanced Battery Management

Intelligent monitoring with visual and audible battery alerts.

Emergency Safety Systems

Emergency stop and emergency lowering included as standard.

Flexible Sling Compatibility

Supports a range of bariatric slings and spreader bar options.
Learn more

Frequently Asked Questions

It is designed for bariatric users and environments requiring higher lifting capacities.

Yes. It is engineered for regular, high-demand use in hospitals and care facilities.

The hoist uses soft-start/stop technology to ensure controlled, comfortable transfers.

Yes. Professional assessment and installation are recommended to ensure safety and compliance.

Yes. The unit is compatible with appropriate ceiling-mounted track configurations.
