What is a ceiling track hoist system?

A ceiling track hoist is an overhead lifting system designed to safely transfer individuals with limited mobility. It enhances accessibility, reduces caregiver strain, and saves space compared to mobile hoists.

What types of ceiling hoist units are available?

Ceiling hoists come in fixed, portable, manual traverse, powered traverse, and bariatric models, each suited for different healthcare environments.

Why choose a ceiling hoist over a mobile hoist?

Ceiling hoists offer better stability, eliminate floor obstructions, and provide smoother patient transfers compared to traditional mobile hoists.

How is a ceiling track hoist installed?

Ceiling hoists are installed using ceiling mounts, wall brackets, or support posts. The method depends on the structure of the building and weight capacity requirements.

What are the structural requirements for installation?

The track system must be reinforced to handle 1.5 times the hoist’s safe working load. Engineers assess ceiling strength and required fixings before installation.

Can ceiling hoists be installed in older buildings?

Yes, older buildings may need additional reinforcements, such as steel beam supports or alternative wall-mounted solutions.

Where can ceiling hoists be used?

Commonly used in hospitals, care homes, rehabilitation centres, and private homes to support mobility needs.

What is a disadvantage of using a motorised hoist?

One potential disadvantage of a motorised hoist is that it requires a power source, making it unusable during power outages unless there is a backup system. Additionally, motorised components may require regular maintenance to ensure reliable operation.

Can ceiling hoists be used in humid environments like swimming pools?

Yes, but they require special coatings and infrared handsets to prevent damage from moisture.

What is the difference between an X-Y system and a monorail hoist?

X-Y systems provide full-room coverage, while monorails follow a fixed track for specific transfer points.

What power supply is required for the hoist?

Ceiling hoists require a 24V power connection, with dedicated outlets for transit couplings, track switches, and charging points.

How do Innova hoist units charge?

Charging happens through the handset, requiring a switched fuse spur installed at ceiling height.

How often should ceiling hoists be serviced?

Hoists need an annual service and load testing at 1.5 times their safe working limit to ensure safety.

Are ceiling track hoists CE-marked for compliance?

Yes, all Innova hoists meet EN: 10535:2006 and Directive 93/42/EEC safety standards.

Can ceiling hoist systems be adapted to different room layouts?

Yes! Systems can be customized with straight monorails, curved tracks, or full-room X-Y coverage for maximum flexibility.

Are inset tracks better than standard ceiling tracks?

Inset tracks provide a sleek, space-saving design and improved infection control.

Can ceiling hoists work alongside privacy curtains?

Yes, the AirGlide Curtain Hopper allows privacy curtains and hoists to coexist without obstruction.

What are some alternatives to ceiling hoists?

• Integralift Hidden Hoist – A discreet hoist that folds away into a cabinet. • Mobile hoists – A non-permanent lifting solution.

Are ceiling hoists compatible with existing care equipment?

Yes, they integrate with hospital beds, wheelchairs, and bathing systems for seamless patient handling.

How can I get technical support or a consultation?

Contact Innova Care Concepts via phone (0345 034 1450) or email (enquiries@innova.uk.com).

Hoisting Equipment

Ceiling Hoist Systems (Complete Solution)

Our ceiling hoist systems provide a fully coordinated lifting solution designed around the needs of users, carers, and the environment. From initial design and structural assessment through to supply, installation, commissioning, and ongoing support, we deliver safe, efficient patient transfer systems tailored to each project.

Whether for healthcare, education, care, or domestic environments, our systems can be configured for single rooms, multiple rooms, corridors, hygiene spaces, and hydrotherapy areas, providing reliable long-term performance and improved accessibility.

Download Brochure

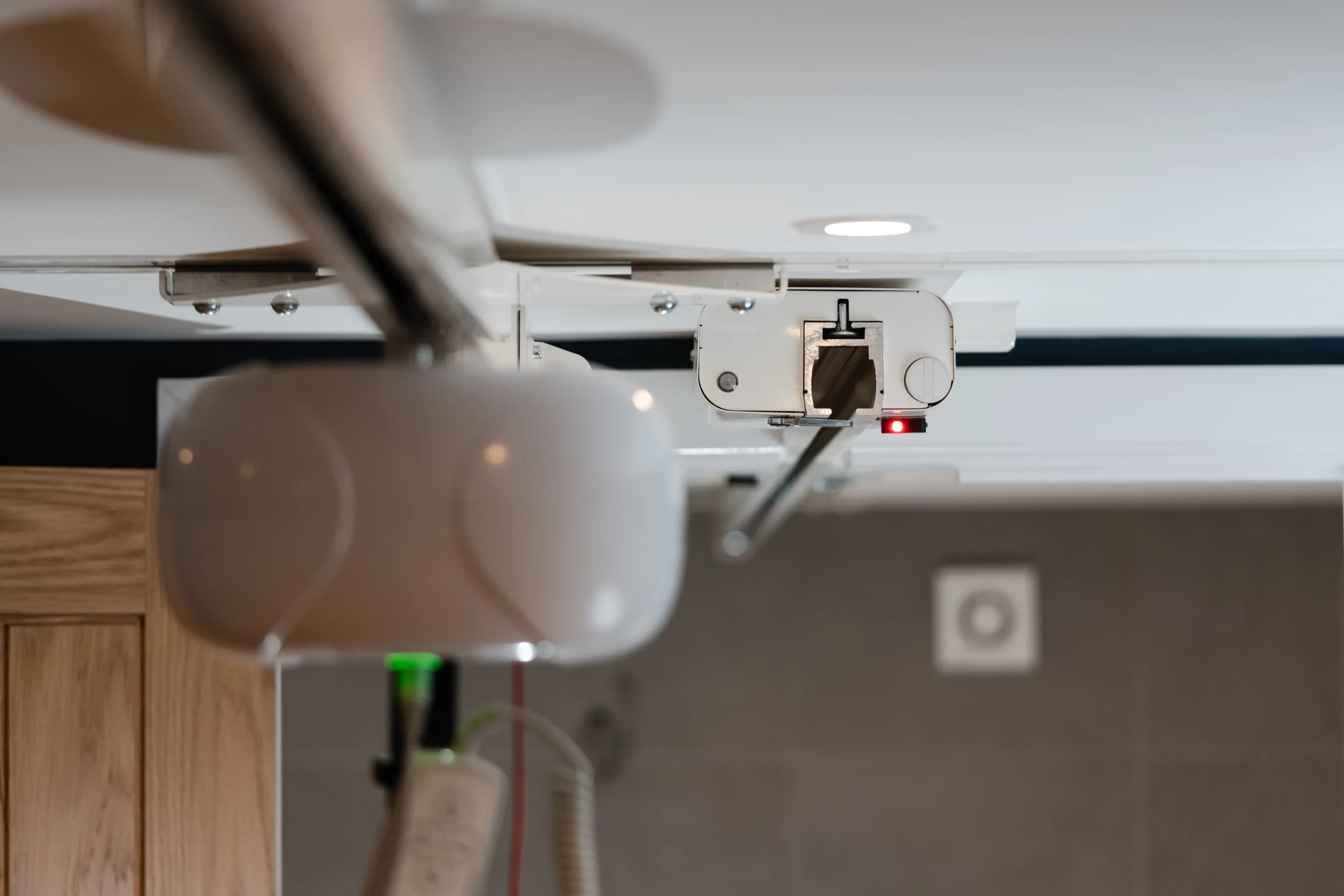

Ceiling Hoist Track Switch on Embedded Rail

Features

Fully Designed and Delivered Solution We manage the complete process from survey and design through to installation, commissioning, and ongoing support.

Bespoke Track Layouts Every system is designed around the building layout, transfer requirements, and user needs to maximise coverage and usability.

Integrated Hoist Units Compatible with AirRise and other ceiling hoist units, selected to suit required safe working loads.

Single and Multi-Room Configurations Solutions can be configured for individual rooms, room-to-room transfers, corridor systems, and whole-building coverage.

Structural Assessment and Coordination Our team assesses structural requirements and coordinates support solutions to ensure safe and compliant installation.

Compatible with Multiple Hoist Units Systems can accommodate a range of ceiling hoist units to suit different user requirements, environments, and lifting needs.

Suitable for New Build and Refurbishment Projects Systems can be incorporated into new developments or integrated into existing buildings with minimal disruption.

Ongoing Service and Maintenance Support Long-term servicing, inspections, and maintenance help ensure continued reliability, compliance, and peace of mind.

Resources

Specifiers Guide
