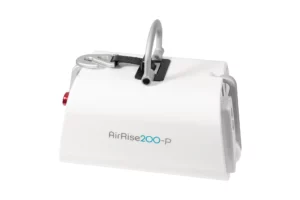

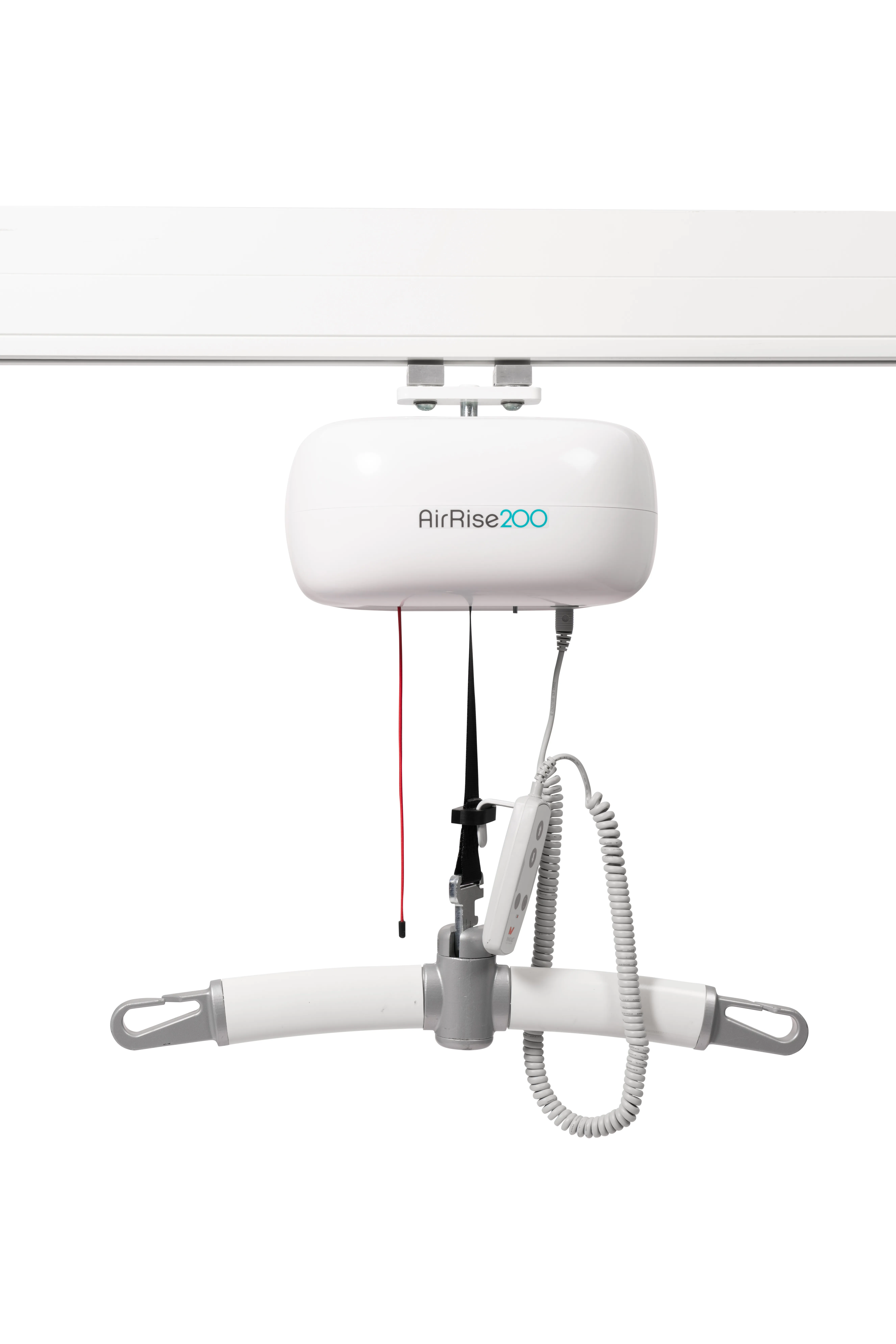

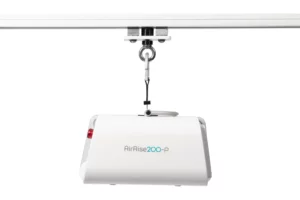

AirRise200 Portable Hoist Unit

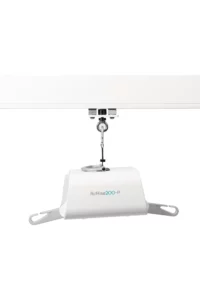

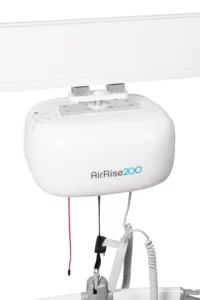

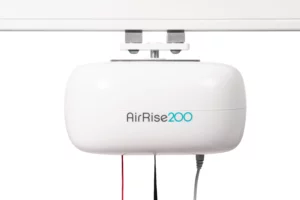

The AirRise200-P is a portable ceiling hoist unit designed for flexible, safe patient transfers across multiple locations. Offering smooth, quiet lifting with soft-start/stop technology, it combines a 200 kg capacity with easy detachment for shared use in care environments.
Smooth, Quiet Operation
Soft-start and soft-stop technology ensures stable, comfortable lifting and lowering, reducing anxiety for users.
Advanced Battery Protection
The AirRise200-P ceiling hoist unit includes a built-in, advanced battery protection system as a standard feature, managed by internal software. This system is designed to maintain battery health and prevent damage from complete discharge.
Smooth Lifting Experience
A swift lifting speed with slow start and stop has patients feeling at ease while still making sure that you can get the transfer done quickly and safely.
Versatile Spreader Bar Compatibility
Versatile Spreader Bar Compatibility
Compatible with padded two-point spreader bars and a range of sling options to suit individual needs.

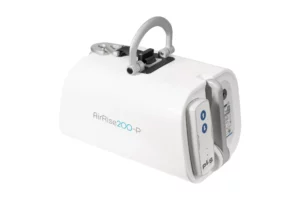

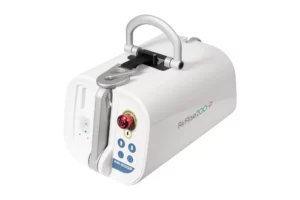

Effortless Charging
Magnetic through-handset charging dock makes recharging simple, quick, and user-friendly.

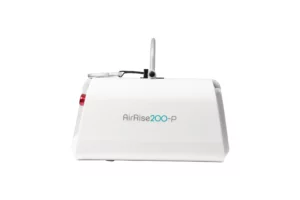

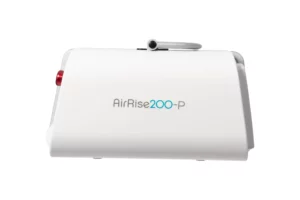

Compact & Lightweight Design
Slim profile and low unit weight make handling, transport, and storage easier when not in use.
Maximum lifting capacity
200kg
Operation
PLS Hand Control
Horizontal displacement speed
Manually

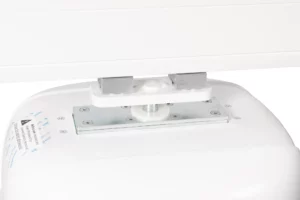

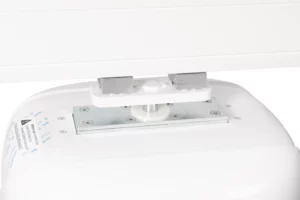

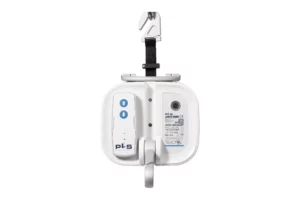

Central Suspension Point
Quick release hook with possibility to fix a spreader bar with a bolt d=10mm
Minimum charging time (critical level)
8 hours
Battery indicator Status LED.
Green = full, orange = charge, red = critical.
Switch-off time when not in use
15 minutes
Switch-off time charge indication (bedroom mode)
2 minutes
Number of lifts per full charge @70cm
>75 @80kg. >45 @200 kg.
Lifting tape (total length)
35x2400 mm (longer available)
Weight
10kg
Sound level up (without load)
47 dB (A)
Sound level down (without load)
45 dB (A)
Sound level up (maximum load)
54 dB (A)
Sound level down (maximum load)
50 dB (A)
Time lifting tape up (full length, no load, average)
49 seconds (43mm/ second)
Time lifting tape down (full length, no load, average)
50 seconds (42mm/ second)
Time lifting tape up (full length, maximum load)
67 seconds (32mm/ second)
Time lifting tape down (average, maximum load)
47 seconds (45mm/ second)
Input voltage
24 V/DC (through PLS Wall Charger)
Batteries
(2x) 12 V – 2.9 Ah (Lead Acid sealed)
IP rating Ceiling Hoist
IP-32
IP rating Hand Control
IP-67
Central suspension point control
Slow start and slow stop
Average stopping distance central suspension point
37 mm
Material (construction) and preservation
Steel (S235JR, S355JR, C45 (electrical galvanized) Aluminium (powder coated)
Cover
MABS with flammability UL-94 HB (higher available)
Length emergency cord
60cm (adjustable)
Basic UDI-DI
87201657932010TQ
In compliance with Regulation (EU) 2017/745 and standards
See Declaration of Conformity
Dimensions (mm)
See diagram above
